全系列桥堆出售，质量稳定，寿命长，用更好的品质回馈您！足电流足耐压，铜脚！一个起拍，现货当天发！其他电子元器件也都有出售，店里搜索不到的请联系客服购买！更多桥堆请咨询客服。

检测方式：单相桥式整流堆是由4只整流二极管按全波整流电路连接方式封装在一起的整流组合件；
判断桥堆好坏的方法是用万用表测量4只二极管正反向电阻；
如果测得的二极管正向电阻为无穷大，说明二极管的内部断路；
如果测得的二极管反向电阻接近于零，表明二极管已经击穿；



输出电压理论：1、单相桥式整流电路中，如果接有滤波电容，在负载开路时，输出电压（也即电容两端的电压）为交流输入电压的峰值，即：U输出=1.414*U输入，也即根2倍的输入电压。

该结论对桥式、全波、半波整流电路都适用。
但负载时，一般设计为1.2倍U输入。滤波电容越大输出电压越高，反之越低。
2、单相桥式整流电路中，如果没有滤波电容，在负载开路时，输出电压为交流输入电压的0.9倍，即：U输出=0.9*U输入。
在带负载时，公式不变，仍然是：U输出=0.9*U输入。  本桥堆适用于700V以内的电路使用。5V,12V,24V,36V,48V,72V——220V,380V，都是可以用的！

* 商品描述 *

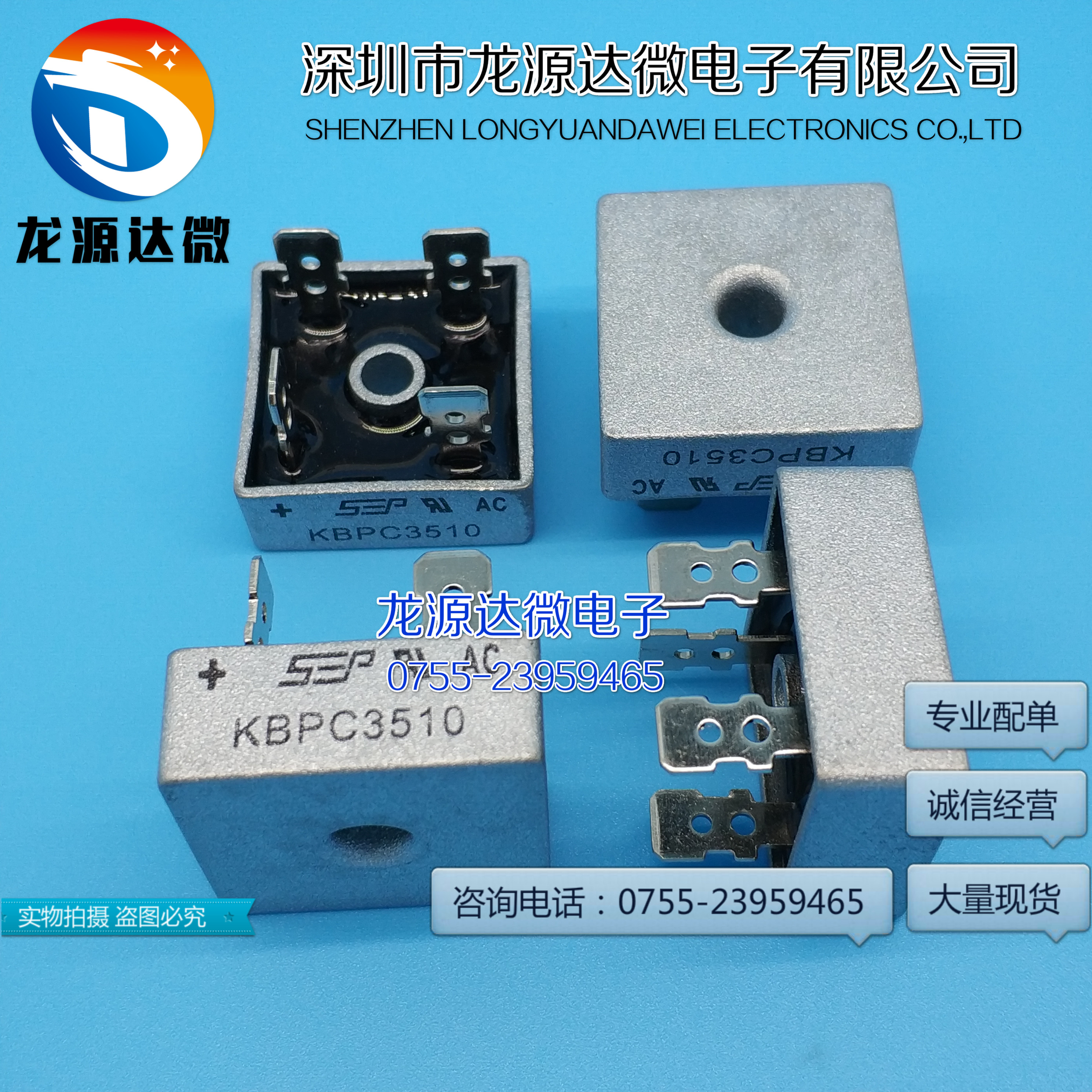

商品型号：KBPC3510

商品成色：全新，铜脚

商品包装：盒装,一盒50个重约1.5公斤，网上默认运费为1公斤内首重，超出部分运费另计，详情请咨询店主，谢谢；

起拍数量:商品一个起拍

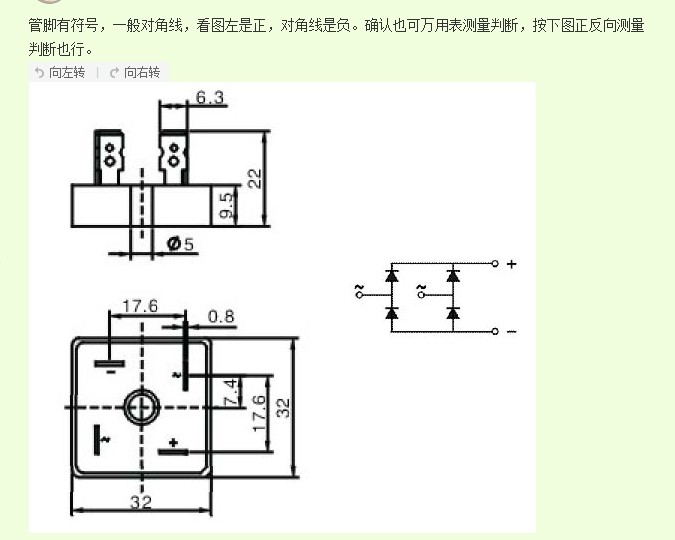

KBPC3510，正负极，交流辨识，如图:

KBPC3510 参数:



基本参数：典型上升时间：60ns

峰值有效值逆向电压：700V

峰值逆向电压重复电压：1000V

平均正向峰值电流：35A

引脚数目：4

最大工作温度：100°C

最小工作温度：-55°C



桥类型：单相

正向峰值不重复浪涌电流：350A

正向峰值电压：1.1V

配置：单路

静态功耗：800（mW）

导电类型：双极型

制作工艺：半导体集成

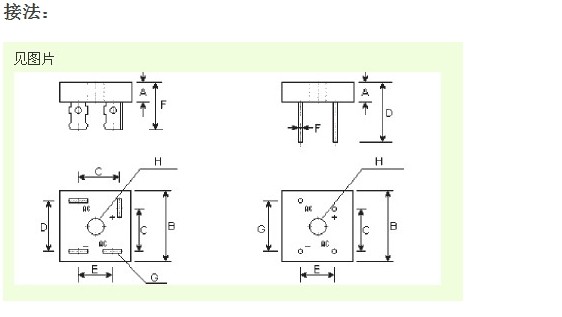

整流桥接法:





[sku_label] => Array ( [1627207] => Array ( [0] => 5633818536 [1] => 2563829610 [2] => 2563829611 [3] => 2563829612 [4] => 2563829615 [5] => 2563829620 [6] => 2563829621 [7] => 5471952793 [8] => 5471952794 [9] => 5471952795 [10] => 5633818537 [11] => 5282580470 [12] => 2563829622 [13] => 5282637899 [14] => 5282637900 [15] => 2449071721 [16] => 5273145898 [17] => 2563829614 [18] => 5471952797 [19] => 5633818538 [20] => 5633818539 [21] => 5471854789 [22] => 5471854790 [23] => 5956609975 ) ) )

USD 0.181
1 Piece

China Domestic Shipping Fee

$0 to BuyToMe (2-5days)

China Domestic shipping fee is the shipping fee from seller to buytome in china it does not include service fee and international shipping fee!

Color Classification

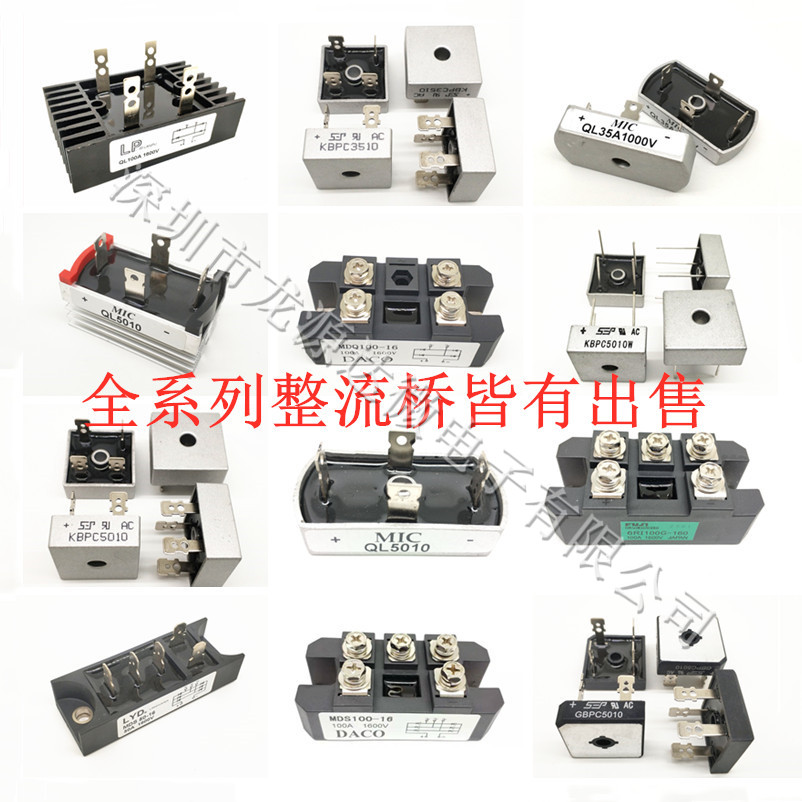

• GBJ5010 50A1000V induction cooker universal
• KBPC2510 (25A1000V)
• KBPC3510 (35A1000V)
• KBPC5010 (50A1000V)
• QL100-16 (60*100 volume)
• GBPC3510 (Single phase 35A1000V)
• GBPC5010 (single phase 50A1000V)
• S25VB100 (welder/air conditioner 25A1000V)
• S35VB100 (welder/air conditioner 35A1000V)

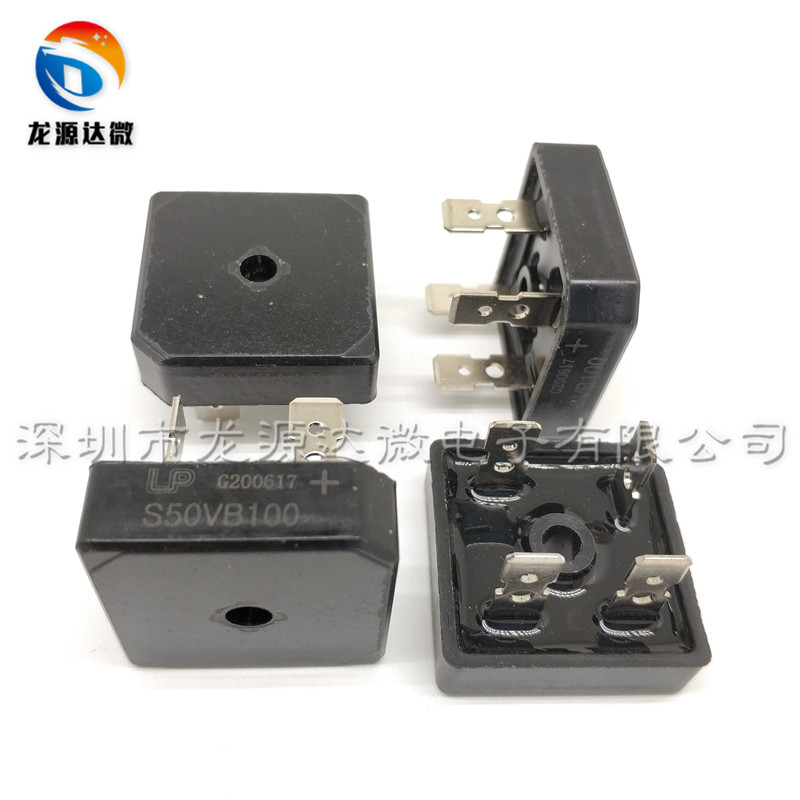

• S50VB100 (welder/air conditioner 50A1000V)
• BR7516 volume 36*36 single phase 75A1600V
• BR3510 (welder rectifier bridge 35A1000V)
• Small bridge pile radiator volume 30*30*15
• QL3510 (usually used for 35A1000V chargers)
• QL5010 (50A1000V charger commonly used)
• QL5010 with radiator
• MDQ100-16 (single phase 100A1600V)
• MDS100-16 (100A1600V three-phase)
• MDS200-16 (three-phase 200A1600V)
• SKBPC3516 (three-phase 35A1600V)
• SKBPC5016 (three-phase 50A1600V)
• SQL3510 with radiator (commonly used for generators)
• SQL5010 with radiator (commonly used for generators)
• SQL100-16 with radiator three-phase 100A
